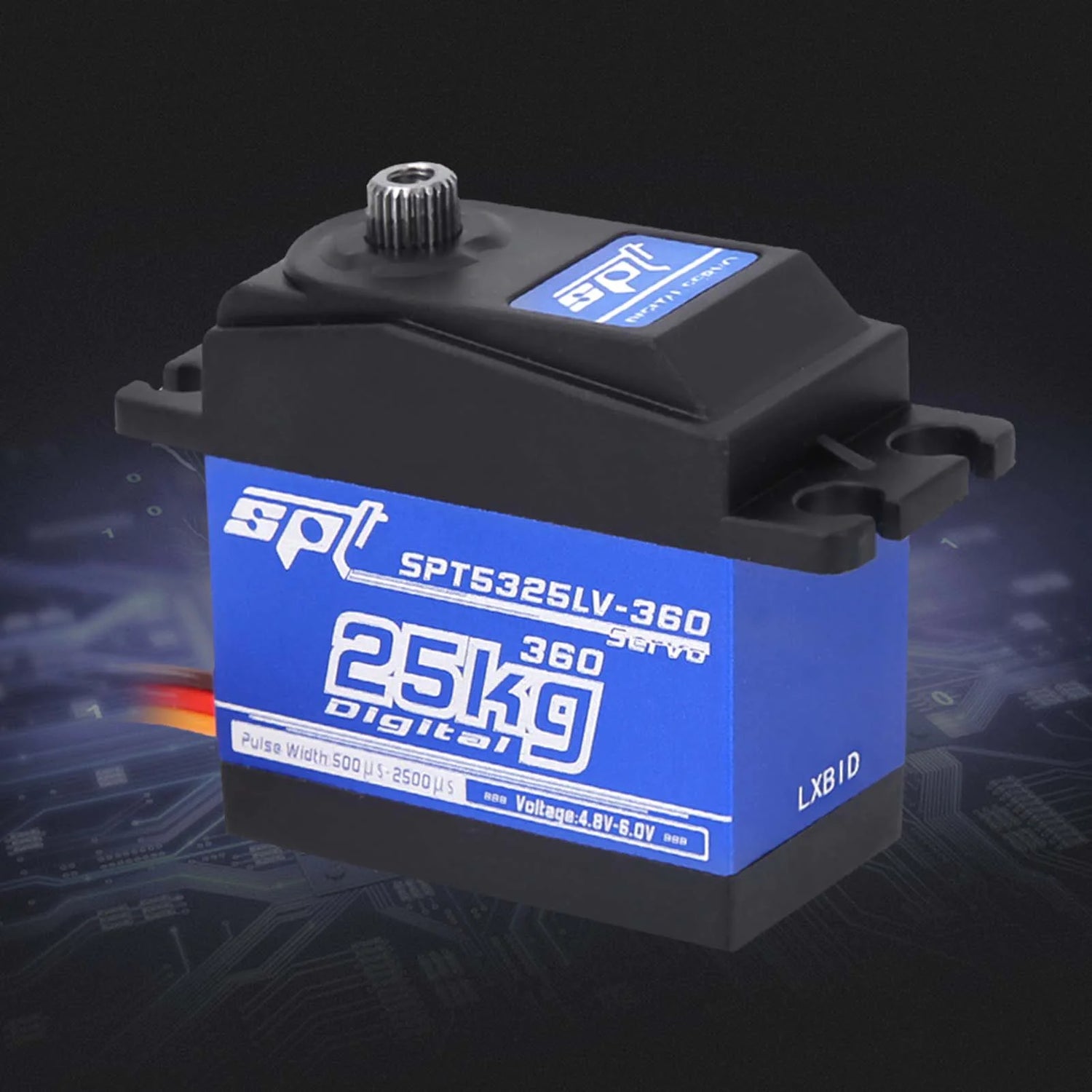

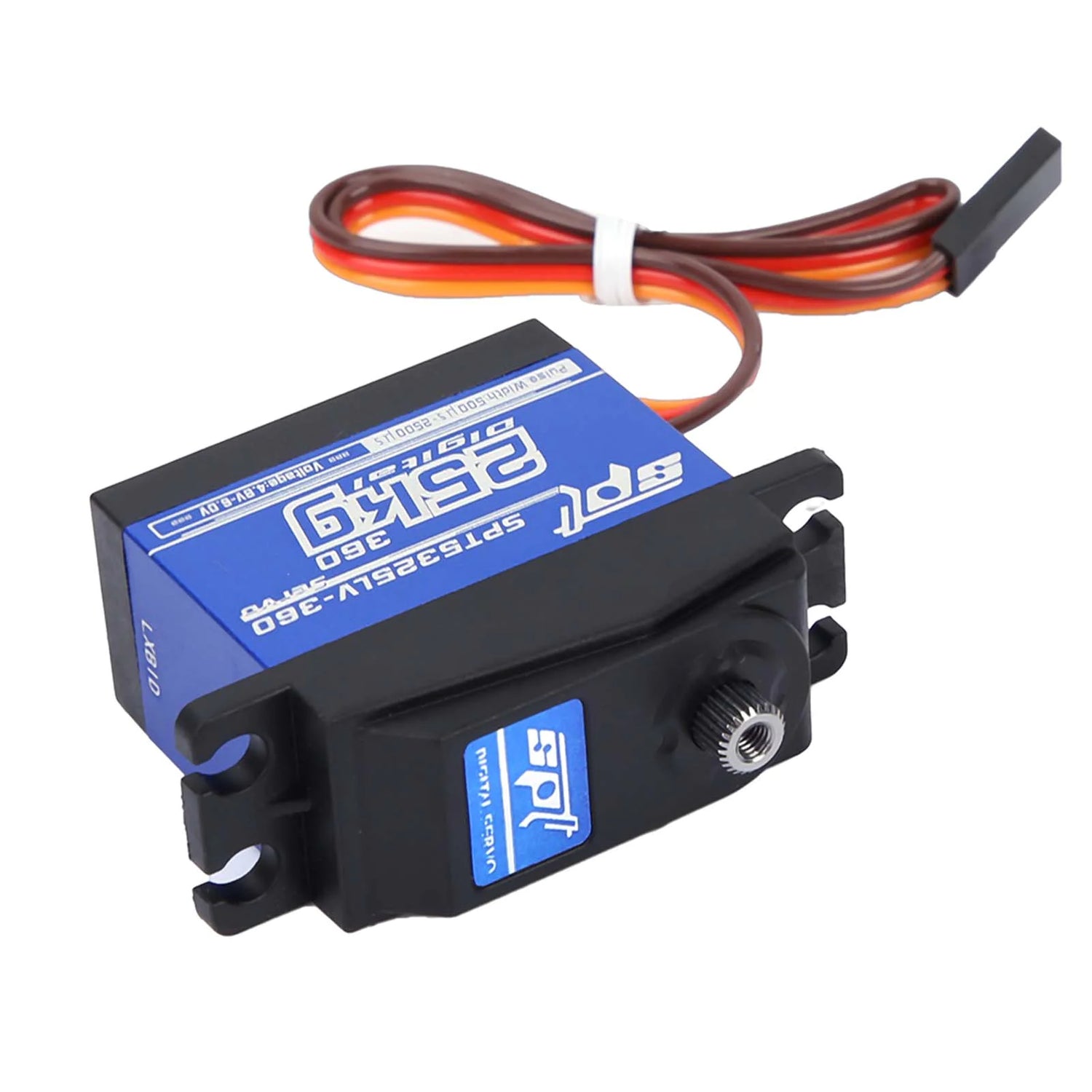

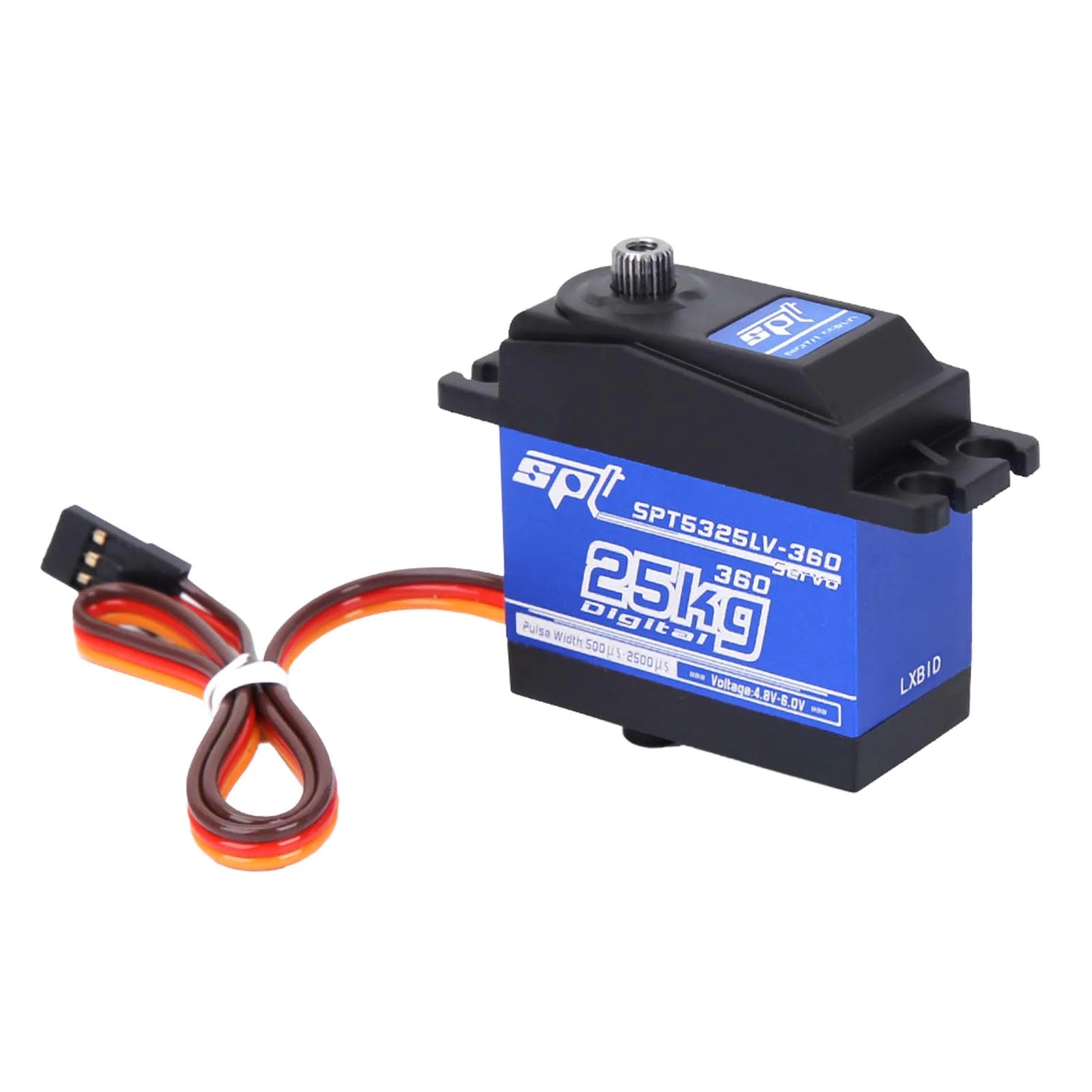

1500μs/ 330hz 360 Continuous Rotation SPT5525LV-360 25KG Digital Servo
1500μs/ 330hz 360 Continuous Rotation SPT5525LV-360 25KG Digital Servo - As Picture / As Picture is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
1500μs/ 330hz 360 Continuous Rotation SPT5525LV-360 25KG Digital Servo
Highlight title
Text to highlight a key feature of your product
Description
Description
Description
Material: Plastic
Product Attributes: Ordinary
Package Size: 60*50*40(1mm)
Key Words:
Model,Accessories§,Digital,Servo§,Digital,Servo,RC,Robot§,Continuous,Rotation,Digital,Servo§,1500μs/,330hz,Digital,Servo
Features:
1、Made of high quality metal material,durable in use. 2、Professional manufacturing, high sensitivity, high reliability. 3、Simple to install and remove, it is convenient to use. 4、Stable performance, it is suitable for robots. 5、A great replacement for the old or damaged one.
Specification:
Features: Made of high quality metal material,durable in use. Professional manufacturing, high sensitivity, high reliability. Simple to install and remove, it is convenient to use. Stable performance, it is suitable for robots. A great replacement for the old or damaged one.

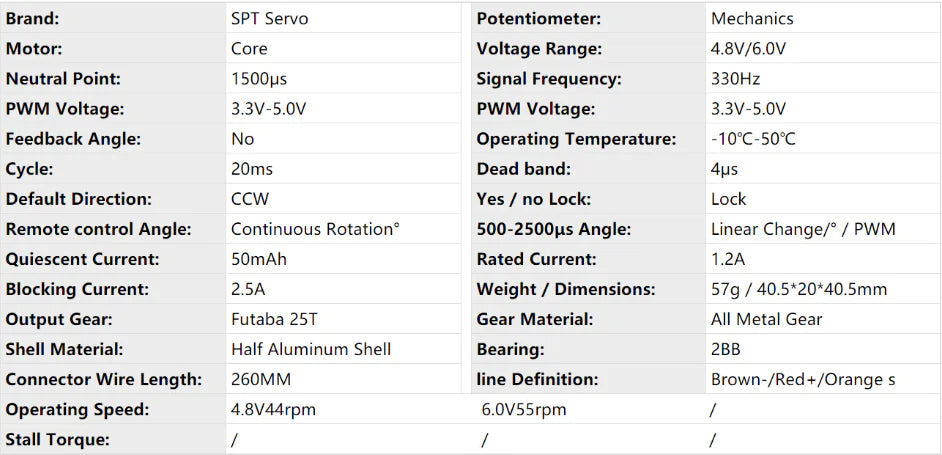

Specifications:
Condition: Brand New
Material: metal
Color: Shown as picture
Product: SPT5525LV-360 25KG Digital Servo Dead
Band: 4μs
Neutral Position: 1500μs/330hz
Motor: Core motor 500-2500μs
Angle: 360 Continuous Rotation
Operating Speed(4.8V): 44rpm
Operating Speed(6.0V): 55rpm
Stall Torque(4.8V): 24 kg.cm Stall
Torque(6.0V): 26 kg.cm
Dimensions: 40.5*20*40.5mm/1.6*0.8*1.6in
Weight: Approx.68g/2.4oz Connector Wire
Length: JR 260mm/10.2in

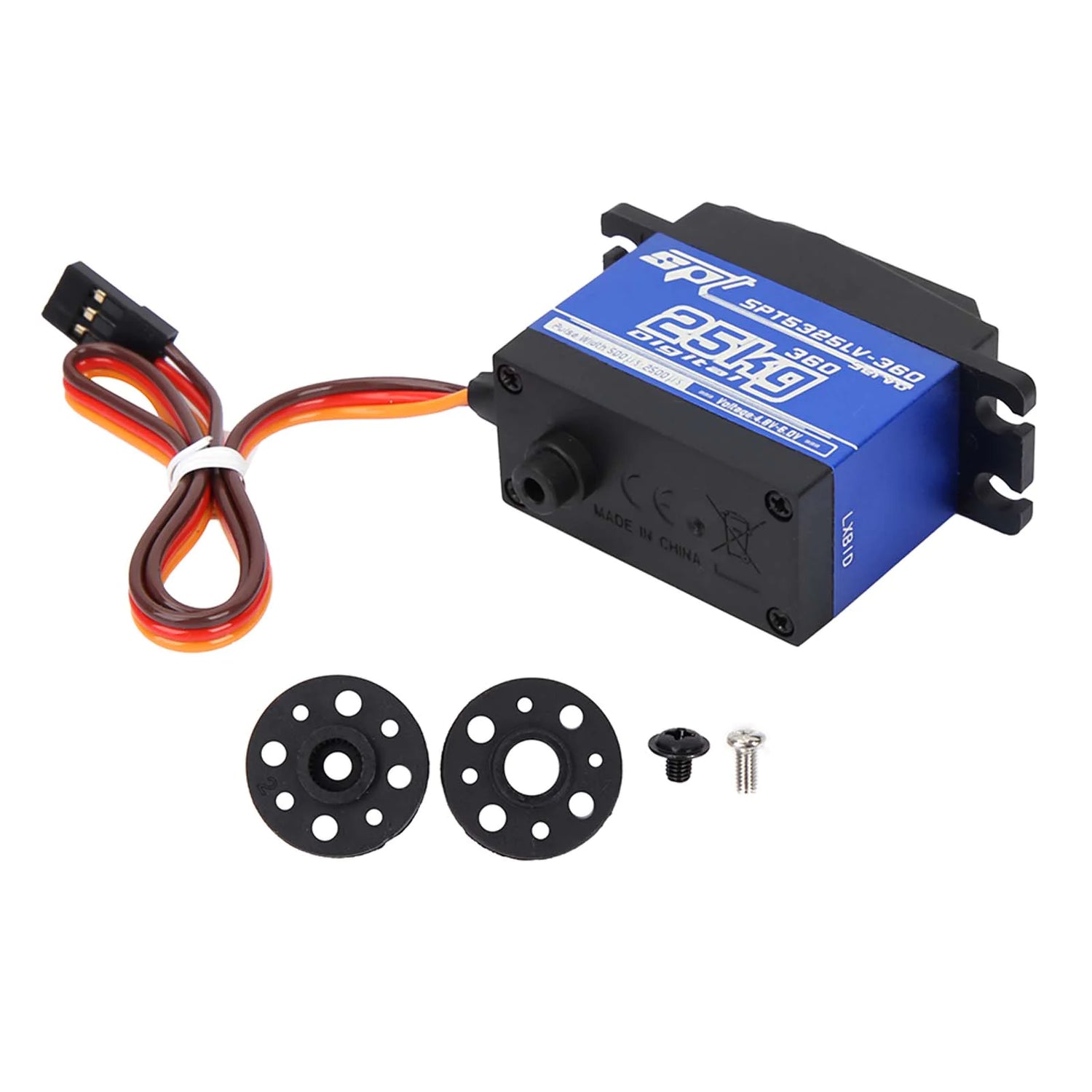

Bearing: 2BB Adapt to the control board pulse width support 500μs-2500μs 360 continuous rotation, the midpoint stop position 1450-1550μs 1450-1000μs has linear variation, Counterclockwise 1550-2000μs has a linear change, Clockwise 1000-500μs and 2000-2500μs maximum number of revolutions Suitable for robots Package List: 1 * SPT5525LV-360 25KG
Digital Servo 1 * Accessories 2 * Screws
